220KV Hydraulic Puller Max Intermittent 90KN Cable Stringing Equipment

220KV Hydraulic Puller Max Intermittent 90KN Cable Stringing Equipment
220KV Hydraulic Puller Max Intermittent 90KN Cable Stringing Equipment
220KV Hydraulic Puller Max Intermittent 90KN Cable Stringing Equipment 220KV Hydraulic Puller Max Intermittent 90KN Cable Stringing Equipment 220KV Hydraulic Puller Max Intermittent 90KN Cable Stringing Equipment

Large Image :  220KV Hydraulic Puller Max Intermittent 90KN Cable Stringing Equipment

Product Details:
Place of Origin: Jiangsu province,China
Brand Name: GALAXY
Certification: ISO/CE
Model Number: GS90
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Container
Delivery Time: 15-25 days
Payment Terms: L/C, T/T
Supply Ability: 80 sets per month
Contact Now

220KV Hydraulic Puller Max Intermittent 90KN Cable Stringing Equipment

Description
Product Name: 9Ton Cable Stringing Equipment Max Intermittent Pull: 90kN
Max Continuous Pull: 80KN Diesel: 118kw(158hp)
Bull-wheel Diameter: 540mm Groove Number: 8
Engine: Cummins Applicatio: Transmission Overhead Power Line
Highlight:

90KN electric wire puller machine

,

220KV electric wire puller machine

,

CE electric wire puller machine

SA-QY90 220KV Hydraulic Puller Max Intermittent 90KN Cable Stringing Equipment

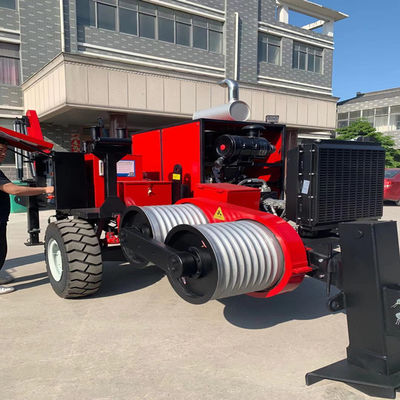

9Ton Cable Stringing Equiment HYDRAULIC PULLER GS90
This machine allows for the tension stringing of twin-bundle conductor of 500mm2 and below in
mountainous and hilly areas, of twin-bundle conductor of 630mm2 and below in flat lands, and of single
conductor 720mm2 in various terrains; besides, it can be used for traction stringing of OPGW or ADSS
optical cable and 220kV haulage rope in various terrains.


9Ton Cable Stringing Equiment Performance
Max intermittent pull 90kN
Max continuous pull 80kN
Speed at max pull 2.5km/h
Max speed 5km/h
Pull at max speed 40kN





9Ton Cable Stringing Equiment  Engine
Diesel 118kw(158hp)
Cooling system water
Electrical system 24V

9Ton Cable Stringing Equiment Characteristics
Bull-wheel diameter 540mm
Groove number 8
Max rope diameter 21mm
Max diameter of rope reel 1400mm
Total weight 4280kg
Overall dimension 4250×2100×2500mm





9Ton Cable Stringing Equiment Main Configuration
Engine Cummins
Main pump German Rexroth
Main motor speed reducer German Rexroth
Tail bracket hoisting motor American Eton
Hydraulic meter German WIKA
Operating handle German Rexroth





9Ton Cable Stringing Equiment Configuration
·Hydraulic dynamometer with set-point and automatic control of maximum pull
·Hydraulic oil cooling system
·Control instruments for hydraulic system and diesel engine
·On board reel winder with automatic level wind, suitable for standard reel mod. 1100 and 1400
·Hydraulic front stabilizer
·Grounding connection point


9Ton Cable Stringing Equiment Hydraulic Transmission
Closed hydraulic circuit for step less speed variation in both rotating directions. This machine is provided
with a pull pro-setting system that maintains the pre-set pulling value (also when the speed is reduced
to "0") by automatically adjusting the operation speed according to the friction and unexpected loads
which may occur.


9Ton Cable Stringing Equiment Additional Devices
·Lighting system for the trailer
·Hydraulic rope clamp for reel change
·Swivel guide rope roller
·Trailer for towing at max speed of 30 km/h
·Extra shaft ·Digital speed and meter counter (extra charge)



220KV Hydraulic Puller Max Intermittent 90KN Cable Stringing Equipment 0
