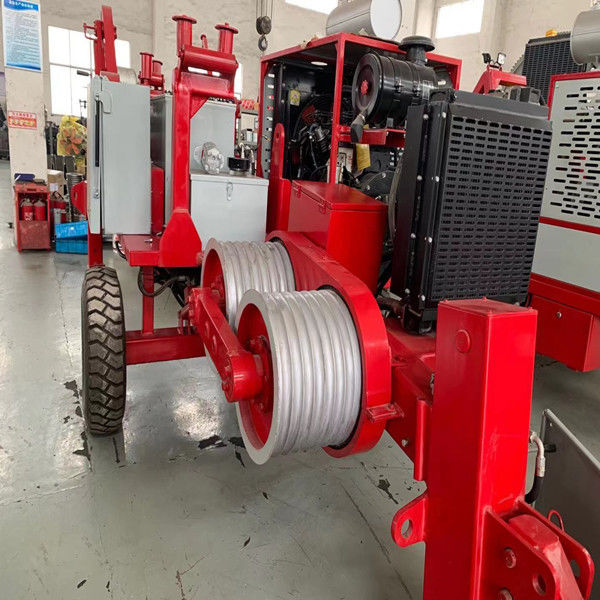

110KV Groove 7 Hydraulic Puller OPGW / ADSS Cable Stringing Equipment

110KV Groove 7 Hydraulic Puller OPGW / ADSS Cable Stringing Equipment
110KV Groove 7 Hydraulic Puller OPGW / ADSS Cable Stringing Equipment
110KV Groove 7 Hydraulic Puller OPGW / ADSS Cable Stringing Equipment 110KV Groove 7 Hydraulic Puller OPGW / ADSS Cable Stringing Equipment 110KV Groove 7 Hydraulic Puller OPGW / ADSS Cable Stringing Equipment 110KV Groove 7 Hydraulic Puller OPGW / ADSS Cable Stringing Equipment

Large Image :  110KV Groove 7 Hydraulic Puller OPGW / ADSS Cable Stringing Equipment

Product Details:
Place of Origin: Jiangsu province,China
Brand Name: GALAXY
Certification: ISO/CE
Model Number: GS40
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Container
Delivery Time: 15-25 days
Payment Terms: L/C, T/T
Supply Ability: 80 sets per month
Contact Now

110KV Groove 7 Hydraulic Puller OPGW / ADSS Cable Stringing Equipment

Description
Machine: 4Ton Cable Stringing Equipment Max Intermittent Pull: 40KN
Max Continuous Pull: 30KN Diesel: 77kw(103hp)
Bull-wheel Diameter: 400mm Groove Number: 7
Max Rope Diameter: 16mm Application: Transmission Overhead Power Lines
Highlight:

ADSS Cable Puller Machine

,

OPGW Cable Puller Machine

,

110KV Cable Puller Machine



SA-QY40 110KV Groove 7 Hydraulic Puller OPGW / ADSS Cable Stringing Equipment





GS40 Cable Stringing Equipment
Together with tension machine, this model allows for the tension stringing of 220kV lines in mountainous
and hilly areas and can be used for the traction stringing of OPGW or ADSS cable in various terrains.


GS40 Cable Stringing Equipment Performance
Max intermittent pull 40kN
Max continuous pull 30kN
Speed at max pull 2.5km/h
Max speed 5km/h
Pull at max speed 20kN





GS40 Cable Stringing Equipment Engine
Diesel 77kw(103hp)
Cooling system water
Electrical system 24V





GS40 Cable Stringing Equipment Characteristics
Bull-wheel diameter 400mm
Groove number 7
Max rope diameter 16mm
Max diameter of rope reel 1200mm
Total weight 3000kg
Overall dimension 3800×2020×2340mm







GS40 Cable Stringing Equipment Main Configuration

Engine Cummins

Main pump German Rexroth

Main motor speed reducer German Rexroth

Tail bracket hoisting motor American Eton

Hydraulic meter German WIKA

Operating handle German Rexroth





GS40 Cable Stringing Equipment Configuration
·Hydraulic dynamometer with set-point and automatic control of maximum pull
·Hydraulic oil cooling system
·Control instruments for hydraulic system and diesel engine
·On board reel winder with automatic level wind, suitable for standard reel mod. 1100 and 1200
·Hydraulic front stabilizer
·Grounding connection point


GS40 Cable Stringing Equipment  Hydraulic Transmission
Closed hydraulic circuit for step less speed variation in both rotating directions. This machine is provided
with a pull pro-setting system that maintains the pre-set pulling value (also when the speed is reduced
to "0") by automatically adjusting the operation speed according to the friction and unexpected loads
which may occur.


GS40 Cable Stringing Equipment Additional Devices
·Lighting system for the trailer
·Hydraulic rope clamp for reel change
·Swivel guide rope roller
·Trailer for towing at max speed of 30 km/h
·Extra shaft
·Digital speed and meter counter (extra charge)
