Product Details:
|
| Product Name: | SA-ZY 2x50 Overhead Line Stringing Equipment | Max Intermittent Tension: | 2x55/1x110kN |
|---|---|---|---|
| Max Continuous Tension: | 2x50/1x100kN | Diesel: | 77kw(103hp) |
| Bull-wheel Diameter: | 1300/1500mm | Groove Number: | 2x5 |
| Diesel Engine: | Cummins | Useage: | Transmission Power Lines Construction |
| Highlight: | 10T overhead line stringing equipment,Intermittent overhead line stringing equipment,5 Grooves line stringing equipment |
||

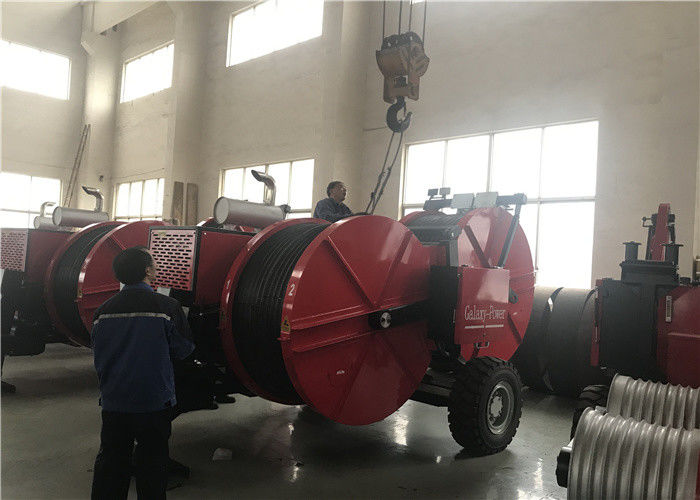

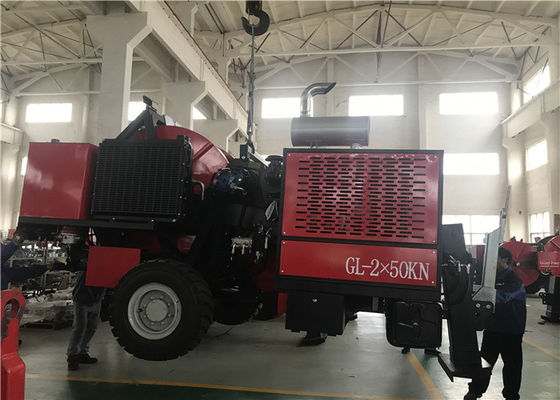

SA-YZ 2x50 Red Color 2x5 Grooves Intermittent 10Ton Overhead Line Stringing Equipment
10Ton Overhead Line Stringing Equipment Application:
Hydraulic tension machine is a kind of mechanical equipment which can provide resistance moment
to make conductors, ground wires and optical cables spread through double drums under a certain tension.
It is used to tense one or more conductors, ground wires and optical cables to obtain good tension state.
Applied for tension stretching and reverse pulling of single conductor in flat, mountainous and hilly terrain.
10Ton Overhead Line Stringing Equipment Technical Parameters
| Item | Product model | SA-ZY-2×50 Hydraulic Tensioner | |
| Performance parameters | Rated tension | 2×50 or 1×100kN | |
| Maximum tension | 2×55 or 1×110kN | ||
| Rated stringing speed | 2.5km/h | ||
| Maximum stringing speed | 5km/h | ||
| Corresponding tension force | 2×25 / 1×50kN | ||
| Maximum reverse traction force | 2x45 /1x90 kN | ||
| Maximum sustained traction speed | 5km/h | ||
| Structural parameters | Stringing drum | Bottom diameter | 1300/1500mm |
| Number of slots | 2x5 | ||
| Maximum applicable diameter of wire | 40mm | ||
| Dimensions | 4300×2200×2700mm | ||
| Weight | 5500kgs | ||
| Main configurations | Engine | CUMMINS | |
| Electrical system | 24V | ||

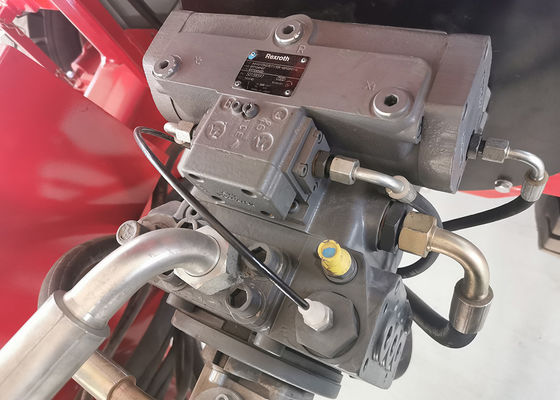

| Hydraulic pump | REXROTH | ||
| Hydraulic motor | REXROTH | ||
| Reducer | REXROTH | ||
| Hydraulic instrument | WIKA | ||
10Ton Overhead Line Stringing Equipment Configuration
·2 hydraulic dynamometers
·Hydraulic oil cooling system
·2 digital meter counters
·2 digital speed meters
·Control instruments for hydraulic system and diesel engine
·Hydraulic front stabilizer ·Grounding connection point
·Hydraulic power pack to control up to 2 separated drum stands with hydraulic motor
10Ton Overhead Line Stringing Equipment Hydraulic Transmission
·The machine can realize step less speed
·The machine is provided with tension presetting system
10Ton Overhead Line Stringing Equipment Additional Devices
·Lighting system for the trailer
·Air brake system for the trailer(extra charge)
·2 hydraulic conductor clamps for drum change operations (extra charge)
·Digital speed and meter counter
