Relese Single Bundle Ground Wire 3Ton Power Line Stringing Equipment

Relese Single Bundle Ground Wire 3Ton Power Line Stringing Equipment
Relese Single Bundle Ground Wire 3Ton Power Line Stringing Equipment
Relese Single Bundle Ground Wire 3Ton Power Line Stringing Equipment Relese Single Bundle Ground Wire 3Ton Power Line Stringing Equipment Relese Single Bundle Ground Wire 3Ton Power Line Stringing Equipment Relese Single Bundle Ground Wire 3Ton Power Line Stringing Equipment

Large Image :  Relese Single Bundle Ground Wire 3Ton Power Line Stringing Equipment

Product Details:
Place of Origin: Jiangsu Province,China
Brand Name: GALAXY
Certification: ISO/CE
Model Number: GL1x30
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Container
Delivery Time: 15-25 days
Payment Terms: L/C, T/T
Supply Ability: 500 sets per month

Relese Single Bundle Ground Wire 3Ton Power Line Stringing Equipment

Description
Key Words: Transmission Line Stringing Equipment ,Overhead Line Stringing Equipment ,tensioner Stringing Equipment Max Continuous Tension: 30KN
Max Reverse Pulling Force: 20KN Bull-wheel Diameter: 1300mm
Gasoline: HONDA Max Conductor Diameter: 40mm
Max Optical Fiber Cable Diameter: 21mm Groove Width: 60mm
Groove Number: 5 Application: Relese Single Bundle And Earth Wire
High Light:

3Ton Tensioner Stringing Equipment

,

Single Bundle Power Line Stringing Equipment

,

60mm Power Line Stringing Equipment



Relese Single Bundle And Ground Wire 3Ton Tensioner Stringing Equipment







3Ton Tensioner Stringing Equipment

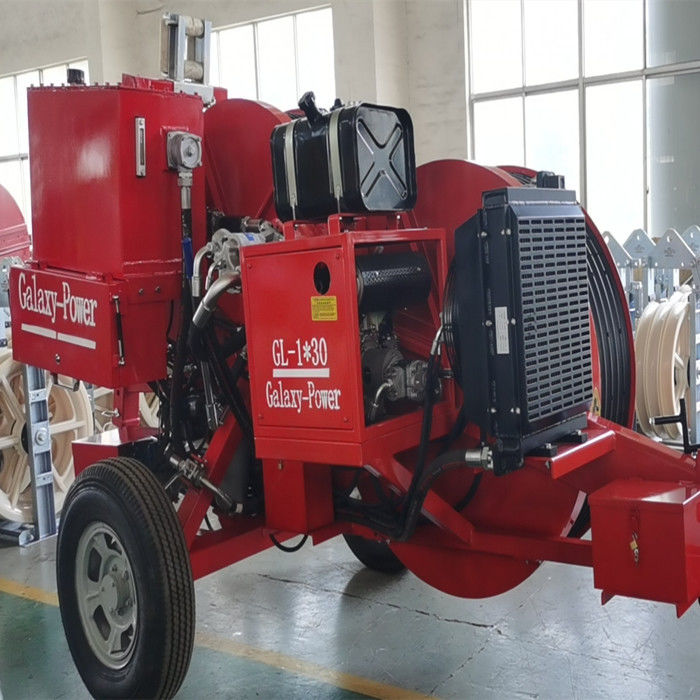

3Ton Hydraulic Tensioner Stringing equipment GL1x30 is used for stringing

single conductor, earth wire, OPGW and ADSS optic fiber cable on

overhead transmission line. It is main tension stringing equipment

on 35KV - 110KV transmission line, and for OPGW stringing operation





Relese Single Bundle Ground Wire 3Ton Power Line Stringing Equipment 0




3Ton Conductor Stringing Equipment Performance :

Max continuous tension 30kN
Speed at max pull 2.5km/h
Max speed 5km/h
Tension at max speed 15kN
Max reverse pulling force 20kN

3Ton Conductor Stringing Equipment  Engine :
Gassoline engine 12kw(16hp)
Electrical system 12V



3Ton Hydraulic Tensioner Stringing Equipment Characteristics :

  • Bull-wheel diameter : 1300mm
  • Max conductor diameter : 40mm
  • Max Optical fiber cable diameter : 21mm
  • Groove width : 60mm
  • Groove number  : 5
  • Total weight : 2064kg
  • Overall dimension 3700×1950×2150mm


3Ton Hydraulic Tensioner Stringing Equipment Main Configuration :
Engine Japan Honda (or Robin)
Hydraulic pump Tianjin Parker
Main motor Tianjin Permco
Speed reducer German Rexroth / Italy Brevini
Hydraulic meter German WIKA


3Ton Hydraulic Tensioner Stringing Equipment Configuration:
·Hydraulic dynamometers
·Hydraulic oil cooling system
·Grounding connection point


3Ton Hydraulic Tensioner Stringing Equipment Hydraulic Transmission :
·The machine can realize step less speed
·The machine is provided with tension presetting system


3Ton Hydraulic Tensioner Stringing Equipment Additional Devices :
·Air brake system for the trailer (extra charge)
·Hydraulic conductor clamps for drum change operations (extra charge)
·Swivel guide rope roller
·Trailer for towing at max speed of 30 km/h


Relese Single Bundle Ground Wire 3Ton Power Line Stringing Equipment 1
