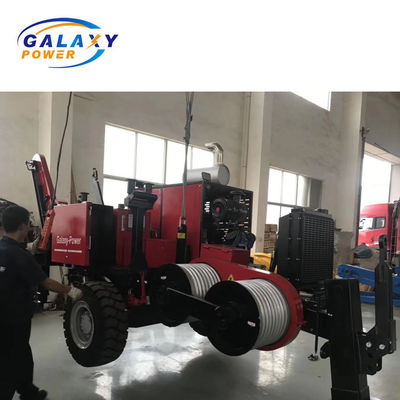

Overhead Line 118kw Puller Tensioner Stringing Equipment 90KN Hydraulic Cable Puller

Overhead Line 118kw Puller Tensioner Stringing Equipment 90KN Hydraulic Cable Puller
Overhead Line 118kw Puller Tensioner Stringing Equipment 90KN Hydraulic Cable Puller
Overhead Line 118kw Puller Tensioner Stringing Equipment 90KN Hydraulic Cable Puller Overhead Line 118kw Puller Tensioner Stringing Equipment 90KN Hydraulic Cable Puller Overhead Line 118kw Puller Tensioner Stringing Equipment 90KN Hydraulic Cable Puller Overhead Line 118kw Puller Tensioner Stringing Equipment 90KN Hydraulic Cable Puller

Large Image :  Overhead Line 118kw Puller Tensioner Stringing Equipment 90KN Hydraulic Cable Puller

Product Details:
Place of Origin: Jiangsu province,China
Brand Name: GALAXY
Certification: ISO/CE
Model Number: GS90
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Container
Delivery Time: 15-25days
Payment Terms: L/C, T/T
Supply Ability: 500 sets per month

Overhead Line 118kw Puller Tensioner Stringing Equipment 90KN Hydraulic Cable Puller

Description
Product: Overhead Line Stringing Equipment Diesel: 118kw(158hp)
Cooling System: Water Electrical System: 24V
Bull-wheel Diameter: 540mm Groove Number: 8
Max Rope Diameter: 21mm Max Intermittent Pull: 90kN
Max Continuous Pull: 80KN Application: Transmission Overhead Power Line
High Light:

90KN stringing line equipment

,

Overhead Line Hydraulic Cable Puller

,

118kw Puller Tensioner

Overhead Line OPGW ADSS 90KN Hydraulic Cable Puller Stringing Equipment





Cable Puller Stringing Equipment

Our GS90 9Ton Hydraulic Cable Puller Machine Stringing Equipment

Apply to paying off 2 fission ACSR-630 and the following size conductor in mountainous and hilly land area,

Paying off fission ACSR-720 and the following size conductor in flat area, Paying off OPGW, ADSS or

500kv pulling rope in various area, and replacing lines under all-weather situation.





Overhead Line 118kw Puller Tensioner Stringing Equipment 90KN Hydraulic Cable Puller 0

Overhead Line 118kw Puller Tensioner Stringing Equipment 90KN Hydraulic Cable Puller 1









Cable Puller Stringing Equipment

This machine allows for the tension stringing of twin-bundle conductor of 500mm2 and below in mountainous and hilly areas, of twin-bundle conductor of 630mm2 and below in flat lands, and of single conductor 720mm2 in various terrains; besides, it can be used for traction stringing of OPGW or ADSS optical cable and 220kV haulage rope in various terrains.

Cable Puller Stringing Equipment Characteristics

Bull-wheel diameter: 540mm

Groove number: 8

Max rope diameter: 21mm

Max diameter of rope reel: 1400mm

Total weight: 4350kg

Overall dimension (length*width*height): 4500*2100*2450mm

Cable Puller Stringing Equipment Characteristics

Bull-wheel diameter: 540mm

Groove number: 8

Max rope diameter: 21mm

Max diameter of rope reel: 1400mm

Total weight: 4350kg

Overall dimension (length*width*height): 4500*2100*2450mm

Overhead Line Stringing Equipment Engine

Diesel 118kw(158hp) Euro II, 4-stroke cycle, turbo-charged

Cooling system: liquid

Electrical system: 24V

Overhead Line Stringing Equipment  Hydraulic Transmission

Closed hydraulic circuit for step less speed variation in both rotating directions. This machine is provided with a pull pro-setting system that maintains the pre-set pulling value (also when the speed is reduced to "0") by automatically adjusting the operation speed according to the friction and unexpected loads which may occur.

Overhead Line Stringing Equipment Main configuration

Engine: Cummins

hydraulic pump: German Rexroth

Main motor: German Rexroth

speed reducer: German Rexroth

Tail bracket hoisting motor: American Eton

Hydraulic meter: German WIKA

Operating handle: German Rexroth

Configuration

Hydraulic dynamometer with set-point and automatic control of maximum pull

Hydraulic oil cooling system

Control instruments for hydraulic system and diesel engine

On board reel winder with automatic level wind, suitable for standard reel mod. 1100 and 1400

Hydraulic front stabilizer

Grounding connection point

Additional Devices

Lighting system for the trailer

Hydraulic rope clamp for reel change

Swivel guide rope roller

Trailer for towing at max speed of 30 km/h

Extra shaft

Digital speed and meter counter (extra charge)

Additional Devices

The chassis provided with Brake, back lights and mudguard, with a single point lift to allow lifting with a crane.

Cable and radio remote control fully replacing all controls at machine panel.

Remote diagnosis via GSM network with GPS modem, Synchronization system

Hydraulic system for drum stand control with flat face quick action couplings

Auxiliary Hydraulic system (700/1000 bar) for power pressing tool

Lockable toolbox, Holding fixture for hose kit, Grounding plate, Acoustic insulation

Biodegradable hydraulic oil, Allowable tension indictor, Overload tension alarm, First Aid Kit

Manufacturer's workshop maintenance manual, in English
