Product Details:
|
| Key Words: | Transmission Line Stringing Equipment ,Overhead Line Stringing Equipment ,Cable Stringing Equipment | Max Intermittent Pull: | 4Ton |
|---|---|---|---|
| Max Continuous Pull: | 3Ton | Speed At Max Pull: | 2.5km/h |
| Max Speed: | 5km/h | Pull At Max Speed: | 20kN |
| Diesel: | 77kw(103hp) | Bull-wheel Diameter: | 400mm |
| Groove Number: | 7 | Useage: | Match With Hydraulic Tensioner Machine |
| High Light: | opgw cable transmission line equipment,puller transmission line equipment,138 kv transmission line stringing equipment |
||

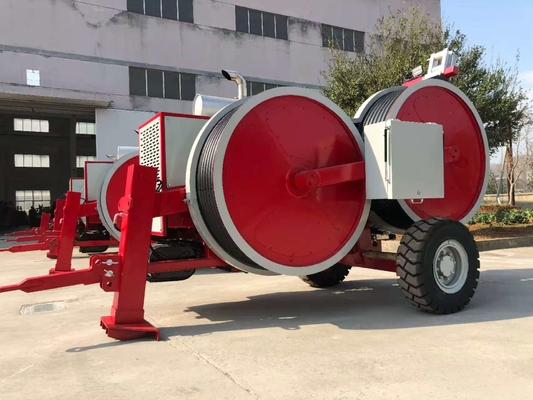

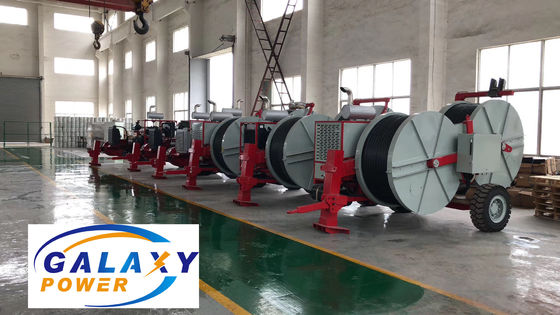

138KV OPGW Cable Puller 4Ton Transmission Line Stringing Equipment
Transmission Line Stringing Equipment
4 ton hydraulic puller is used for pulling single pilot wire rope for stringing single conductor,
or OPGW cable in overhead transmission line.
4 ton hydraulic puller is used for pulling single pilot wire rope for stringing single conductor, earth wire
or OPGW cable in overhead transmission line construction. It is equipped with water cooled diesel
engine system, hydraulic pump system, and automatic winding system for pilot wire rope
Transmission Line Stringing Equipment Technicial Parameter :
| Maximum linepull (kN) | 40 |
| Continuous linepull (kN) | 30 |
| Maximum linespeed (km/h) | 5 |
| Bullwheel bottom of groove diameter(mm) | Φ400 |
| Bullwheel grooves number | 7 |
| Maximum suitable steelrope diameter (mm) | Φ16 |
| Maximum through connector diameter (mm) | Φ50 |
| Engine power | Diesel |
| Dimensions (mm) | 3800×2020×2340mm |
| Weight (kg) | 2500 |
|
Engine Cummins |
·Hydraulic dynamometer with set-point and automatic control of maximum pull
·Hydraulic oil cooling system
·Control instruments for hydraulic system and diesel engine
·On board reel winder with automatic level wind, suitable for standard reel mod. 1100 and 1200
·Hydraulic front stabilizer
·Grounding connection point
Closed hydraulic circuit for step less speed variation in both rotating directions. This machine is provided
with a pull pro-setting system that maintains the pre-set pulling value (also when the speed is reduced
to "0") by automatically adjusting the operation speed according to the friction and unexpected loads
which may occur.
·Lighting system for the trailer
·Hydraulic rope clamp for reel change
·Swivel guide rope roller
·Trailer for towing at max speed of 30 km/h
·Extra shaft
·Digital speed and meter counter (extra charge)
