220kv Overhead Line Transmission Line Equipment Twin Conductor

220kv Overhead Line Transmission Line Equipment Twin Conductor
220kv Overhead Line Transmission Line Equipment Twin Conductor
220kv Overhead Line Transmission Line Equipment Twin Conductor 220kv Overhead Line Transmission Line Equipment Twin Conductor

Large Image :  220kv Overhead Line Transmission Line Equipment Twin Conductor

Product Details:
Place of Origin: CHINA
Brand Name: GALAXY
Certification: CE,ISO
Model Number: GL2x40/1x80
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Container
Delivery Time: 15-25 days
Payment Terms: L/C, T/T
Supply Ability: 100 sets per month

220kv Overhead Line Transmission Line Equipment Twin Conductor

Description
Machine: Cable Tension Stringing Equipment Engine: Diesel Cummins
Hydraulic Pump: German Rexroth Max Intermittent Tension: 2x45/1x90kN
Max Continuous Tension: 2x40/1x80kN Max Reverse Pulling Force: 2×35/1x70kN
Bull-wheel Diameter: 1300/1500mm Max Conductor Diameter: 40mm
Conductor Number: Twin Application: Transmission Overhead Power Lines
High Light:

220kv transmission line equipment

,

twin conductor transmission line equipment

,

220kv transmission line stringing equipment



220KV Overhead Line Twin Conductor 8Ton Cable Tension Stringing Equipment







Cable Tension Stringing Equipment



8Ton Cable Tension Stringing Equipment GL2x40 (SA-ZY2x40) are used for overhead transmisson line twin conductors stringing.

It can be used for diameter up to 40 mm Cable. We normally used 9 Ton Hydraulic Cable Puller GS90 (SA-QY90)

with 8 Ton Hydraulic Cable Tensioner for two conductors stringing on 220KV , 275 KV, 330KV power line

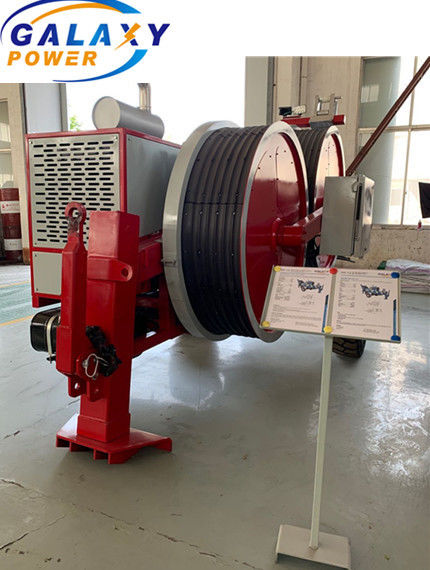

220kv Overhead Line Transmission Line Equipment Twin Conductor 0





Cable Tension Stringing Equipment Performance :
Max intermittent tension 2x45/1x90kN
Max continuous tension 2x40/1x80kN
Speed at max pull 2.5km/h
Max speed 5km/h
Tension at max speed 2x20/1x40kN
Max reverse pulling force 2×35/1x70kN
Max reverse pulling speed 5km/h


Cable Tension Stringing Equipment  Engine :
Diesel 77kw(103hp)
Cooling system water
Electrical system 24V


Overhead Line Stringing Equipment Characteristics :
Bull-wheel diameter 1300/1500mm
Max conductor diameter 40mm
Groove number 2x5
Total weight 6250kg
Overall dimension 4400×2280×2550mm


Overhead Line Stringing Equipment Main Configuration :
Engine Cummins
Hydraulic pump GermanRexroth/Dnish Danfoss
Main motor German Rexroth/French Leduc
Speed reducer German Rexrothn
Hydraulic meter German WIKA
Operating handle German Rexroth




Overhead Line Stringing Equipment Configuration

·Hydraulic dynamometers
·Hydraulic oil cooling system
·Digital speed and meter counter
·Hydraulic front stabilizer
·Grounding connection point
·Hydraulic power pack to control up to 2 separated drum stands with hydraulic motor



Overhead Line Stringing Equipment Configuration Hydraulic Transmission

·The machine can realize step less speed
·The machine is provided with tension presetting system



Overhead Line Stringing Equipment Configuration Additional Devices

·Lighting system for the trailer
·2 hydraulic rope/conductor clamp (extra charge)
·Swivel guide rope roller
·Trailer for towing at max speed of 30 km/h
·Digital speed and meter counter


220kv Overhead Line Transmission Line Equipment Twin Conductor 1
