Product Details:
|
| Rated Load Lifting Capacity: | 3Ton | Hand Pull When Fully Loaded: | 343(35)N(KG) |
|---|---|---|---|
| Lifting Chain Diameter: | 8mm | Lifting Chain Number: | 2 |
| Net Weight: | 27kg | Standard Lifting Height: | 3m |
| Type: | Hand Chain Hoist | Test Load: | 37.5KN |
| High Light: | powerline construction tools,transmission line stringing tools |
||

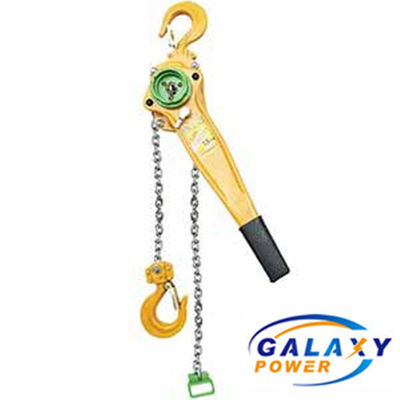

Transmission Line Tool GXHSZ-3A Manual Chain Block Small Safety Factor 3T Standard Chain Hoist
Product parameters
| Model | HSZ-0.5A | HSZ-1A | HSZ-1.5A | HSZ-2A | HSZ-3A | HSZ-5A | HSZ-10A | HSZ-20A | HSZ-30A | HSZ-50A | |
| Rated load lifting capacity ton | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 10 | 20 | 30 | 50 | |
| Standard lifting height m | 2.5 | 2.5 | 2.5 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | |
| Test load KN | 6.3 | 12.5 | 18.7 | 25 | 37.5 | 63 | 125 | 250 | 375 | 625 | |
| Hand pull when fully loaded N(KG) |
200 (20.5) |
304 (31) |
343 (35) |
410 (41.8) |
343 (35) |
414 (42.2) |
423 (43.2) |
435x2( 44.3x2) |
435x2 (244.3x2) |
435x2 (244.3x2) |
|
| Lifting chain number | 1 | 1 | 1 | 1 | 2 | 2 | 4 | 8 | 12 | 22 | |
| Lifting chain diameter mm | 6 | 6 | 8 | 8 | 8 | 10 | 10 | 10 | 10 | 10 | |
|
|
|||||||||||
Note: Except for the list, non-standard lifting height can be ordered.
