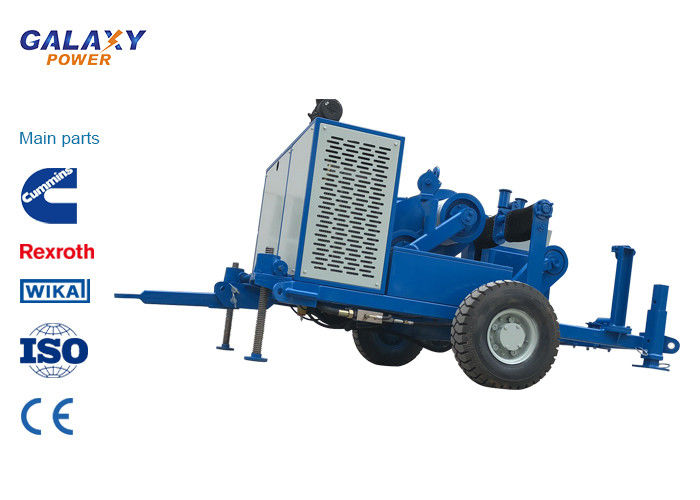

Highly Performance Underground Cable Machine Hydraulic Puller

Highly Performance Underground Cable Machine Hydraulic Puller
Highly Performance Underground Cable Machine Hydraulic Puller Highly Performance Underground Cable Machine Hydraulic Puller

Large Image :  Highly Performance Underground Cable Machine Hydraulic Puller

Product Details:
Place of Origin: China
Brand Name: GALAXY
Certification: ISO9001
Model Number: GP100
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Carton
Delivery Time: 10-30days
Payment Terms: L/C, T/T
Supply Ability: 200 sets per month

Highly Performance Underground Cable Machine Hydraulic Puller

Description
Name: Underground Cable Laying Machine Hydraulic Puller Max Pull Force: 100kN
Diesel: Yanmar Japan 49.2hp/36kw Total Weight: 3350kg
Type: Underground Cable Pulling Machine Engine: Yanmar Japan
Hydraulic Motor: Rexroth German Overall Dimension (length*width*height): 4000*2200*1800mm
High Light:

cable pulling tools equipment

,

pulling machine equipment



GP100 Underground Cable achine Yanmar Japan 49.2hp/36kw 100kN Hydraulic Puller



Product Detail

  • Model: GP100
  • Max pull force: 100kN
  • Max speed: 83m/min
  • Total weight: 3350kg
  • Overall dimension (length*width*height): 4000*2200*1800mm
  • Diesel: Yanmar Japan 49.2hp/36kw

  • Cooling system: Water

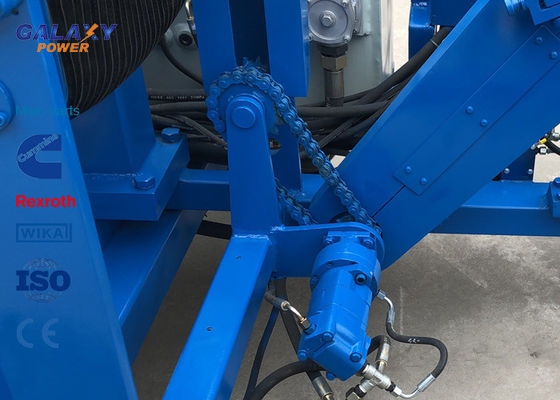

  • Hydraulic motor: Rexroth German

  • Hydraulic pump: Danfoss

  • Hydraulic meter: German

  • Operating handle: Bondioli & Pavesi Italy

  • Hydraulic valve: Sun USA

The hydraulic puller is suitable for laying underground transmission cables and fiber optic cables. It is driven by a diesel-hydraulic power unit and is completely enclosed in the coverage area to limit noise emissions.



Configuration Control panel with instruments for hydraulic system and engine.
A dynamometer used to check pull values
Hydraulic oil cooling system
In the case of over pull, the preset for maximum tension can stop the puller
The hydrostatic loop, which allows the puller to continue to change speed in two rotational modes, can operate only one command
Hydraulic emergency brake operates automatically at the center of the instruction bar or in the case of hydraulic failure (not suitable for lifting)
Mechanical front and rear stabilizer
Grounding connection point
Large channel steel capstan with anti-skid device



Highly Performance Underground Cable Machine Hydraulic Puller 0
