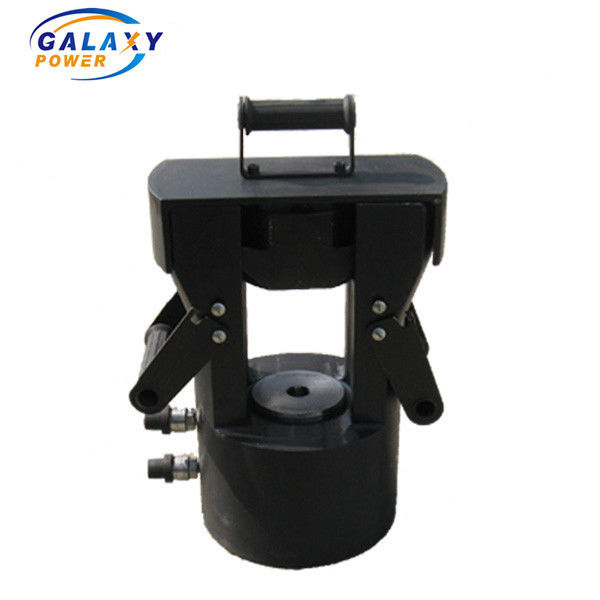

Hydraulic Compressor Diesel Pump 100MPa Overhead Line Accessories

Hydraulic Compressor Diesel Pump 100MPa Overhead Line Accessories
Hydraulic Compressor Diesel Pump 100MPa Overhead Line Accessories
Hydraulic Compressor Diesel Pump 100MPa Overhead Line Accessories Hydraulic Compressor Diesel Pump 100MPa Overhead Line Accessories Hydraulic Compressor Diesel Pump 100MPa Overhead Line Accessories

Large Image :  Hydraulic Compressor Diesel Pump 100MPa Overhead Line Accessories

Product Details:
Place of Origin: China
Brand Name: GALAXY
Certification: ISO9001 CE
Model Number: TYQY-125
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: Negotiable
Packaging Details: Container
Delivery Time: 45 days
Payment Terms: L/C, T/T
Supply Ability: 100sets/month

Hydraulic Compressor Diesel Pump 100MPa Overhead Line Accessories

Description
Product Name: Hydraulic Compressors Diesel Pumps Max Compression Force: 1250KN
Compressor Weight: 40kg Conductor Size: ≤720
Aluminum Dies: 26~60mm Steel Dies: 12~26mm
Max Force: 100Mpa Pump Weight: 83kg
Application: Power Construction
High Light:

Overhead Conductor Dies Pumps

,

Hydraulic Compressor Dies Pumps

Transmission Line Accessories Hydraulic Compressors Dies Pumps for Overhead Conductor



Quick details:


1. Transmission Line Stringing Equipment Accessories & Tools
2. Hydraulic compressor for overhead conductor
3. Max compression force: 1250kN
4. Conductor size: ≤720
5. Aluminum dies: 26~60mm Steel Dies: 12~26mm
6. With Gasoline pump, Max force: 100Mpa

7. Galaxy Brand



Description:



The hydraulic compressors, mainly implemented in press forged steel, have the following characteristics: excellent weight/power ratio; very short pressing cycle (all the presses have an hydraulically-driven piston release); each power unit or manual hydraulic pump (and hoses) is interchangeable with any hydraulic press.



Specification:



For compressor
Model Max compression force (kN) Rated pressure (kN) Conductor size (mm) Max stroke (mm) Weight (kg)
QY-35 350 70 ≤240 25 12
QY-65 650 94 ≤500 25 25
QY-125 1250 94 ≤720 25 40
QY-200 2000 94 ≤1440 25 85





For Die
Model Compressor model Aluminum Dies Steel Dies Copper Dies
QYD-35 QY-35 16/18/20/22/24/26/30/32/34/36   16~500mm2
QYD-65 QY-65 26/28/30/32/34/36/38/40/45/50 12/14/16/18/20/22/24/26 16~800mm2
QYD-125 QY-125 26/28/30/32/34/36/38/40/45/50
/52/55/60
12/14/16/18/20/22/24/26 16~800mm2
QYD-200 QY-200 26/28/30/32/34/36/38/40/45/50
/52/55/60/65/70/75/80
12/14/16/18/20/22/24/26
/28/30/32
16~800mm2





For Gasoline pump
Model Max compression force Rated pressure Flow Gasoline volume Power Weight
YB-100 100Mpa 80kN 1.6L/min 8L 4hp 83kg



More Pictures:

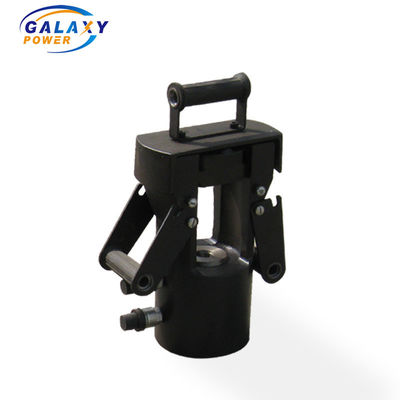

Hydraulic Compressor Diesel Pump 100MPa Overhead Line Accessories 0Hydraulic Compressor Diesel Pump 100MPa Overhead Line Accessories 1

COMPANY PROFLIE:
Established in 2016, Galaxy Power Industry Limited. is a manufacturer specialized in the research, development and production of Electric Power Machinery. We are a high-tech enterprise in China. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
Our products sell in Australia, Turkey, Mexico, Panama, Peru, Brazil, Egypt, Sudan, Kenya, Angola, Pakistan etc. Our products are also very popular and best-selling in china.
1. Main configurations of our machine are from Germany and USA Engine: American Cummins Main pump: German Rexroth Main motor: German Rexroth Speed reducer: German Rexroth Tail bracket hoisting motor: American Eton Hydraulic meter: German Operating handle: German Rexroth
2. We have one year quality guarantee. if internal components go wrong within one year, we will change another for free.
3. We can supply the specific components to the buyers with cost price after warranty period.

Hydraulic Compressor Diesel Pump 100MPa Overhead Line Accessories 2
