Anti‑twist Steel Wire Rope Non‑Rotating Wire Rope for Transmission Line Stringing

Anti‑twist Steel Wire Rope Non‑Rotating Wire Rope for Transmission Line Stringing
Anti‑twist Steel Wire Rope Non‑Rotating Wire Rope for Transmission Line Stringing
Anti‑twist Steel Wire Rope Non‑Rotating Wire Rope for Transmission Line Stringing Anti‑twist Steel Wire Rope Non‑Rotating Wire Rope for Transmission Line Stringing Anti‑twist Steel Wire Rope Non‑Rotating Wire Rope for Transmission Line Stringing Anti‑twist Steel Wire Rope Non‑Rotating Wire Rope for Transmission Line Stringing

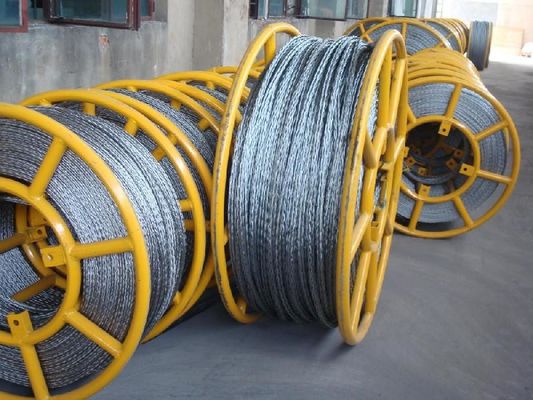

Large Image :  Anti‑twist Steel Wire Rope Non‑Rotating Wire Rope for Transmission Line Stringing

Product Details:
Place of Origin: Jiangsu province,China
Brand Name: GALAXY
Certification: ISO/CE
Model Number: GLFUX
Payment & Shipping Terms:
Minimum Order Quantity: 1000M
Price: Negotiable
Packaging Details: With Roller
Delivery Time: 15-25 days
Payment Terms: L/C, T/T
Supply Ability: 10000 Per/month.
Contact Now

Anti‑twist Steel Wire Rope Non‑Rotating Wire Rope for Transmission Line Stringing

Description
Name: Anti‑twist Steel Wire Rope | Non‑Rotating Wire Rope For Transmission Line Stringing Breaking Load: 158KN
Stands: 12 Diameter: 15mm
Package: With Roller Application: Transmission Overhead Power Lines
Highlight:

Anti-twist steel wire rope

,

Non-rotating transmission line rope

,

Pilot rope for stringing



Anti‑twist Steel Wire Rope | Non‑Rotating Wire Rope for Transmission Line Stringing







15mm Anti bursting Pilot Rope Description:



Anti bursting Pilot Rope galvanized steel rope made up of braiding strands. High tech version made with high tensile strength steel strands allowing higher working and breaking loads with the same linear mass.





15mm Anti bursting Pilot Rope Quick details:

  1. Transmission Line Stringing Accessories
  2. Normal Diameter:15mm
  3. Breakage load: 158kN
  4. Size available: 9~30mm
  5. Anti bursting Pilot Rope Galvanized Steel Wire Rope
  6. 6 Squares 12 Strands
  7. Length: 1000m
  8. Reel diameter: 1250mm



15mm Anti bursting Pilot Rope  Usage :

Anti bursting Pilot Rope Applied to mechanical pulling and tensioning release conductors as pulling rope or leading rope.





15mm Anti bursting Pilot Rope Feature:

Braided 1960 Mpa high-strength  Anti bursting Pilot Rope galvanized steel wire .rotation resistance during pulling .

The specification and length of the steel wire rope can be customized according to your request.





15mm Anti bursting Pilot Rope Technical Data:




Item no. Normal Diameter (mm) Structure Breakage tension(kN) Standard Length (m)

Diameter of spool

(mm)

Total weight

(kgs)
9-12x19W 9 12 Strands 55 1000 850 294
10-12x19W 10 12 Strands 55 1000 850
11-12x19W 11 12 Strands 80 1000 1000 454
YL13-12x19W 13 12 Strands 120 1000 1100 642
15-12x19W 15 12 Strands 158 1000 1250 886
18-12x19W 18 12 Strands 210 1000 1400 1154
20-12x29Fi 20 12 Strands 250 1000 1400 1394
22-12X29Fi 22 12 Strands 320 1000 1400 1258
24-12x29Fi 24 12 Strands 360 800 1440 1474
28-12x29Fi 28 12 Strands 480 500 1600
30-12x29Fi 30 12 Strands 540 500 1600
20-18x19W 20 18 Strands 300 1000 1440 1368
22-18X29Fi 22 18 Strands 389 800 1440
24-18x29Fi 24 18 Strands 440 800 1440
28-18x29Fi 28 18 Strands 580 500 1600 1655
30-18x29Fi 30 18 Strands 658 500 1600

1900
