Product Details:
|
| Material: | Metal | Rated Load: | 10KN-20KN |
|---|---|---|---|
| Usage: | Heavy Duty | Product Name: | Self Gripping Clamps |
| Max.opening: | 18mm-36mm | Function: | Cable Adjustment |
| High Light: | glass disc insulator,high voltage glass insulators |
||

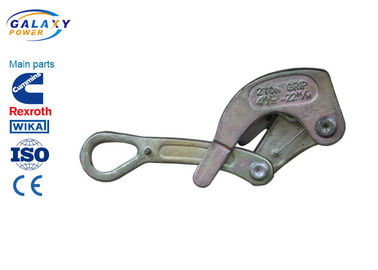

Flexible Conductors Self-Gripping Clamps Cable Wire Puller Clamp Tool in Tranmission Line Accessories
Product Introduction
Self-gripping clamps made of high tensile steel, hot forged, heat treated, finely machines and cadmium plated. Designed to tension cables and conductors of various materials and different diameters. GXSKL self-gripping clamps fit for insulated cable, aluminum made.
Performance Parameter
| Model | Cable diameter(mm²) | Rated load(kN) | Max.opening(mm) | Weight(kg) |
| GXSKL-1 | 10~14 | 10 | 18 | 1.4 |
| GXSKL-1.5 | 14~20 | 15 | 24 | 3.0 |
| GXSKL-2 | 20~25 | 20 | 32 | 4.0 |
| GXSKLA-2 | 25~29 | 20 | 32 | 4.0 |
| GXSKLB-2 | 29~34 | 20 | 36 | 6.6 |
